Solar Panel Specification

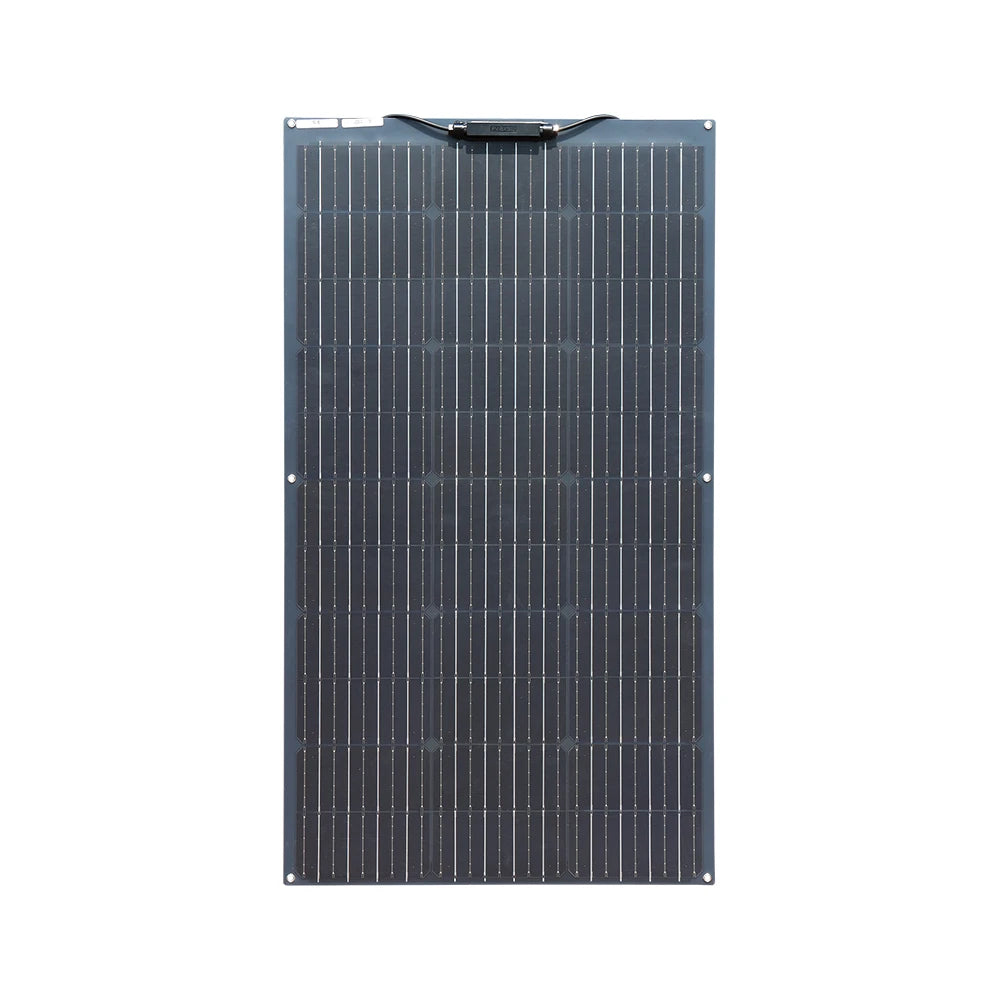

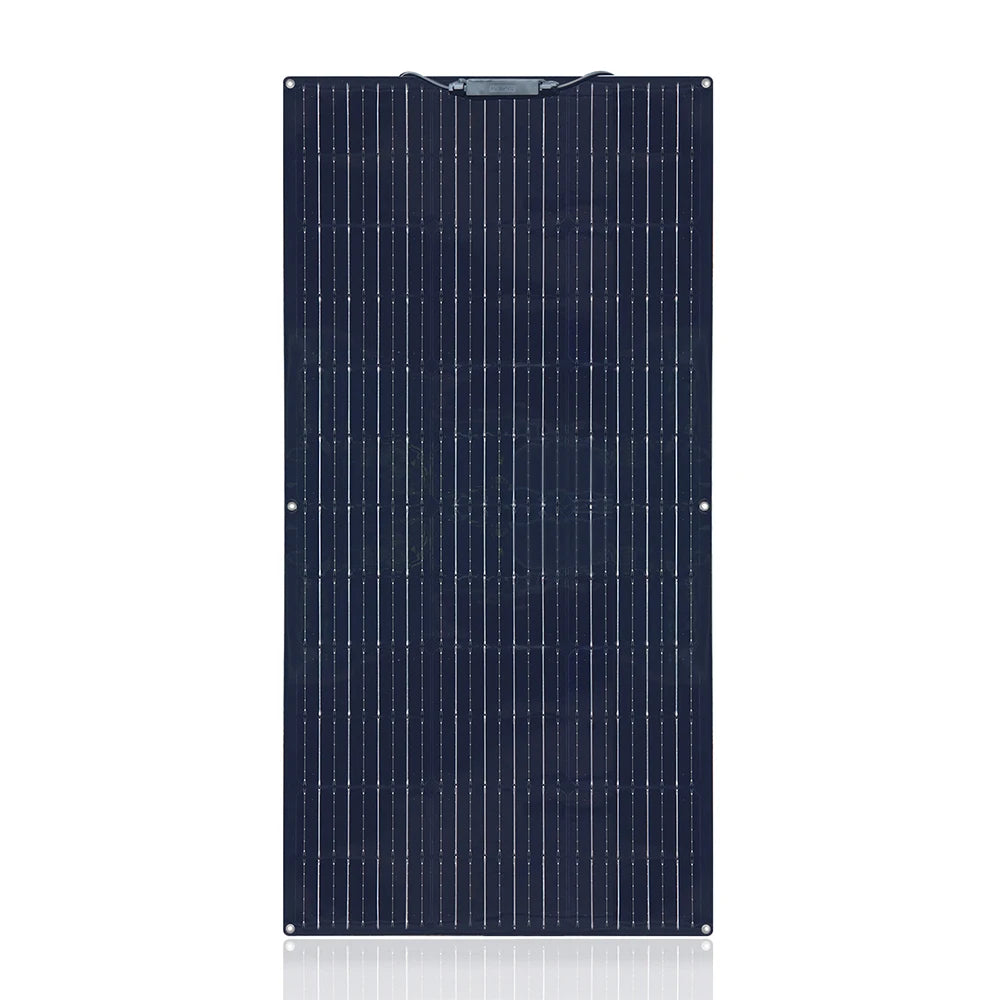

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 19.8V

Maximum supply voltage (Vpm): 16.5V

Short circuit current (Isc): 6.36 A

Working current (Iop): 6.06A

Size:1000*550*3mm

Output tolerance: ±5%

Temperature range: -40℃ to +80℃

Weight 2 kg

Main material* Mono crystalline

Frame material EVA+PET

Electrical Specification Performance Under Standard Test Conditions(STC*)

Maximum power Pmax 100 Wp

Open circuit voltage Voc 19.8 V

Maximum power point voltage Vmpp 16.5 V

Short-circuit current I sc 6.36 A

Maximum power point current I mpp 6.06A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.

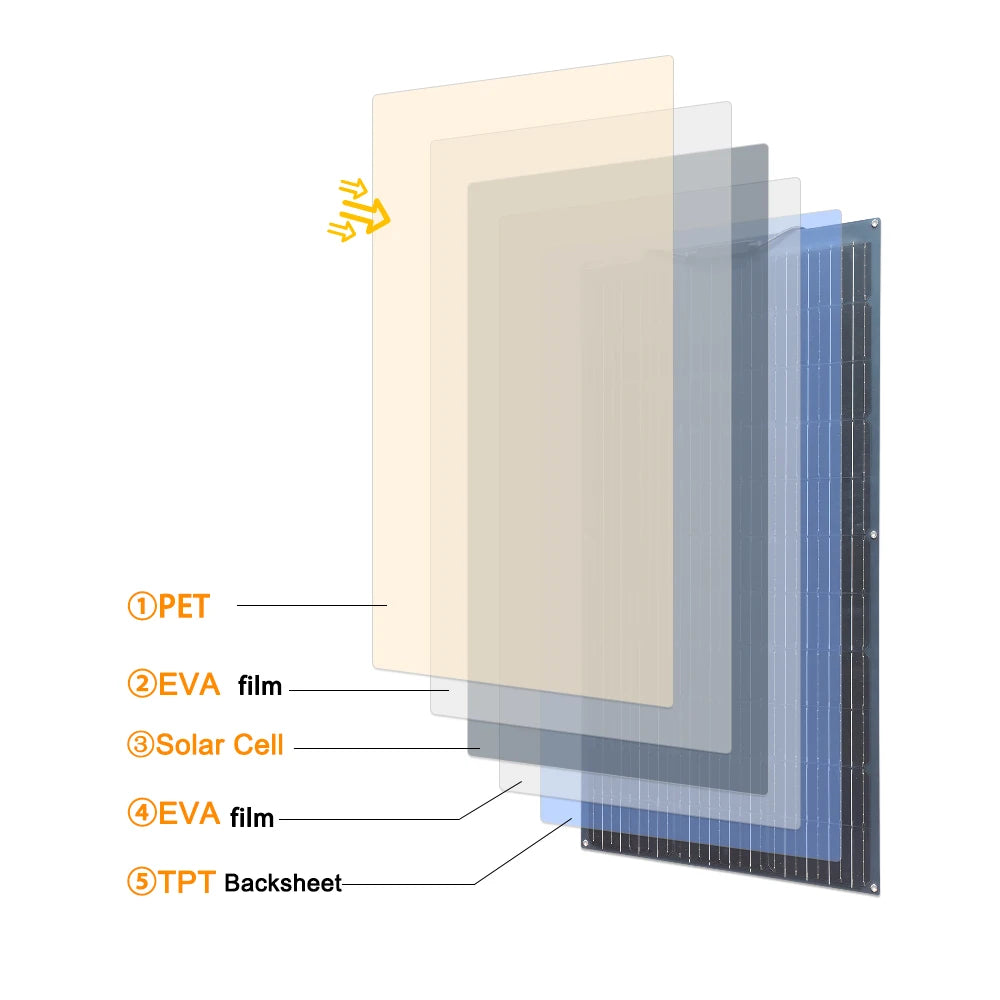

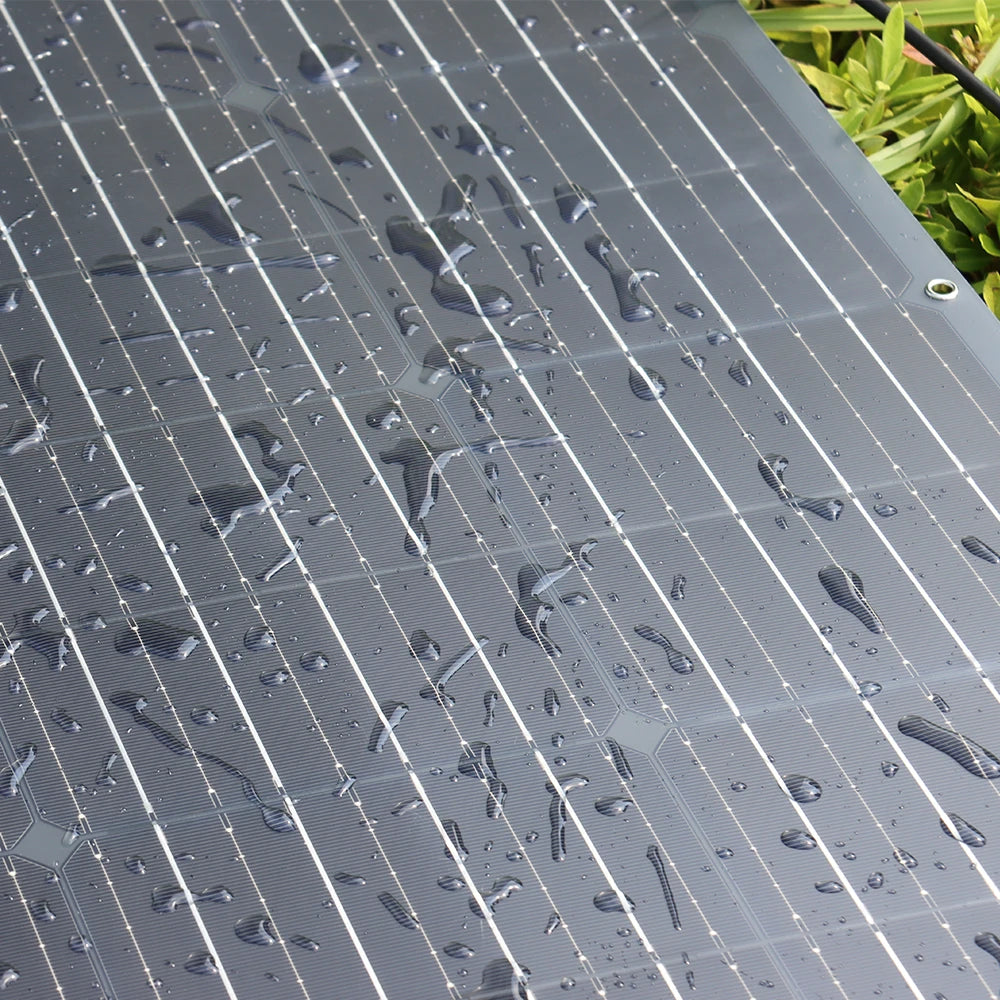

Component Material

Cells per module 30

Cell type Monocrystalline Silicon

Front PET

System Intergration Technician

Maximum system voltage SC II 1000 V

Maximum reverse current 10 A

Maximum system voltage USA NEC 600 V

Junction box IP67

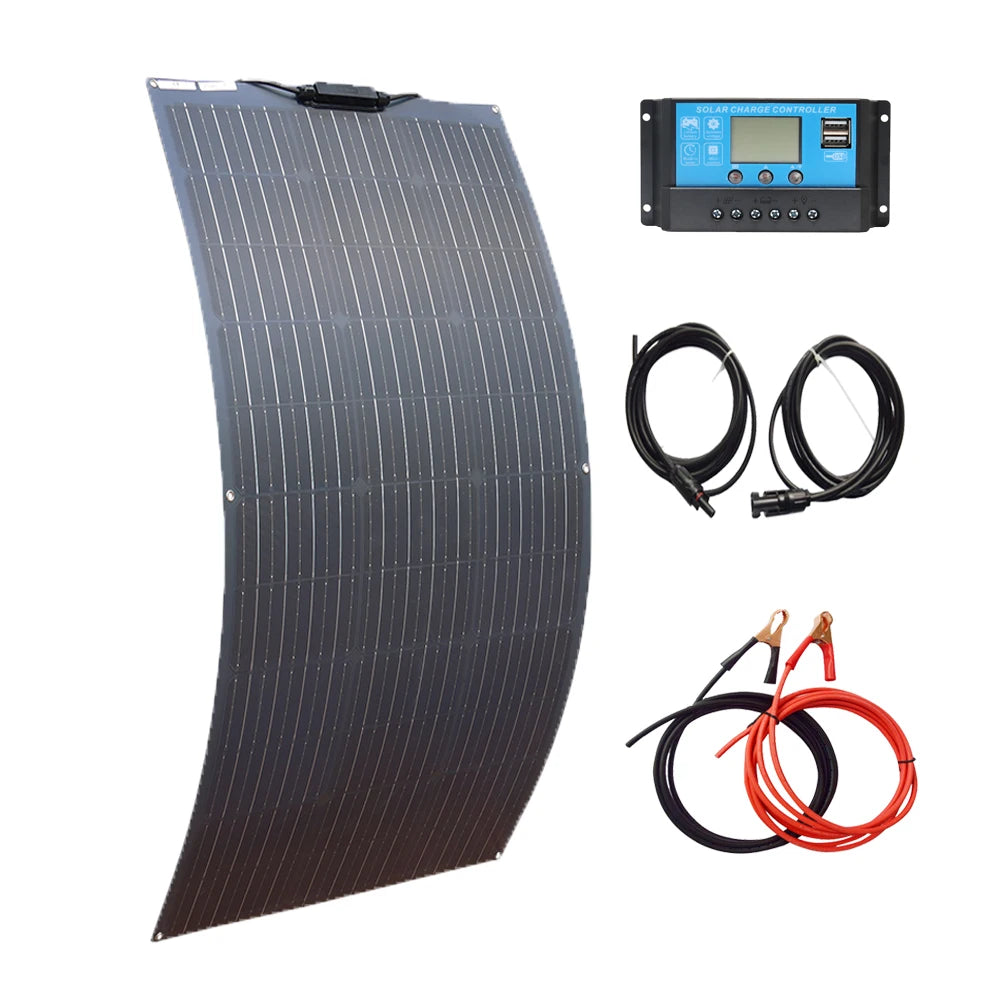

Package 1:100W solar panel

1 pcs solar panel (size 1000mm*550mm*2.5mm)

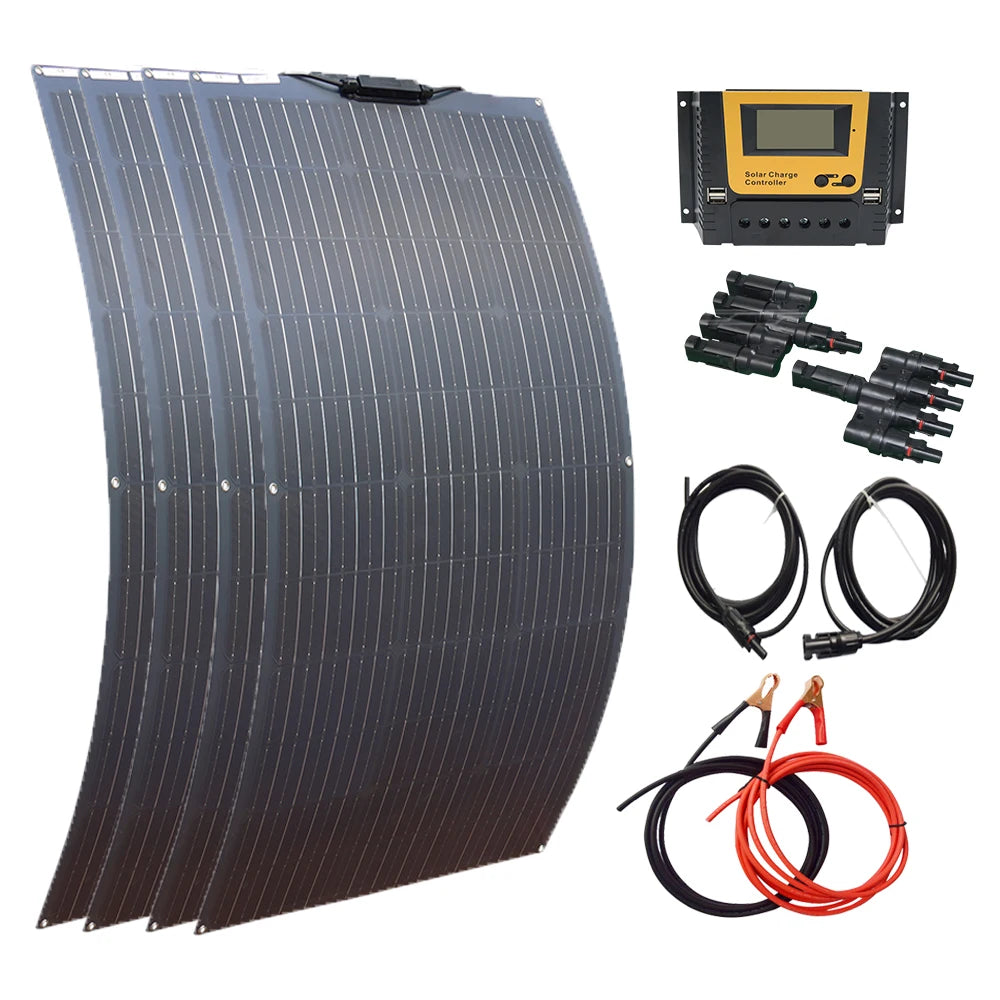

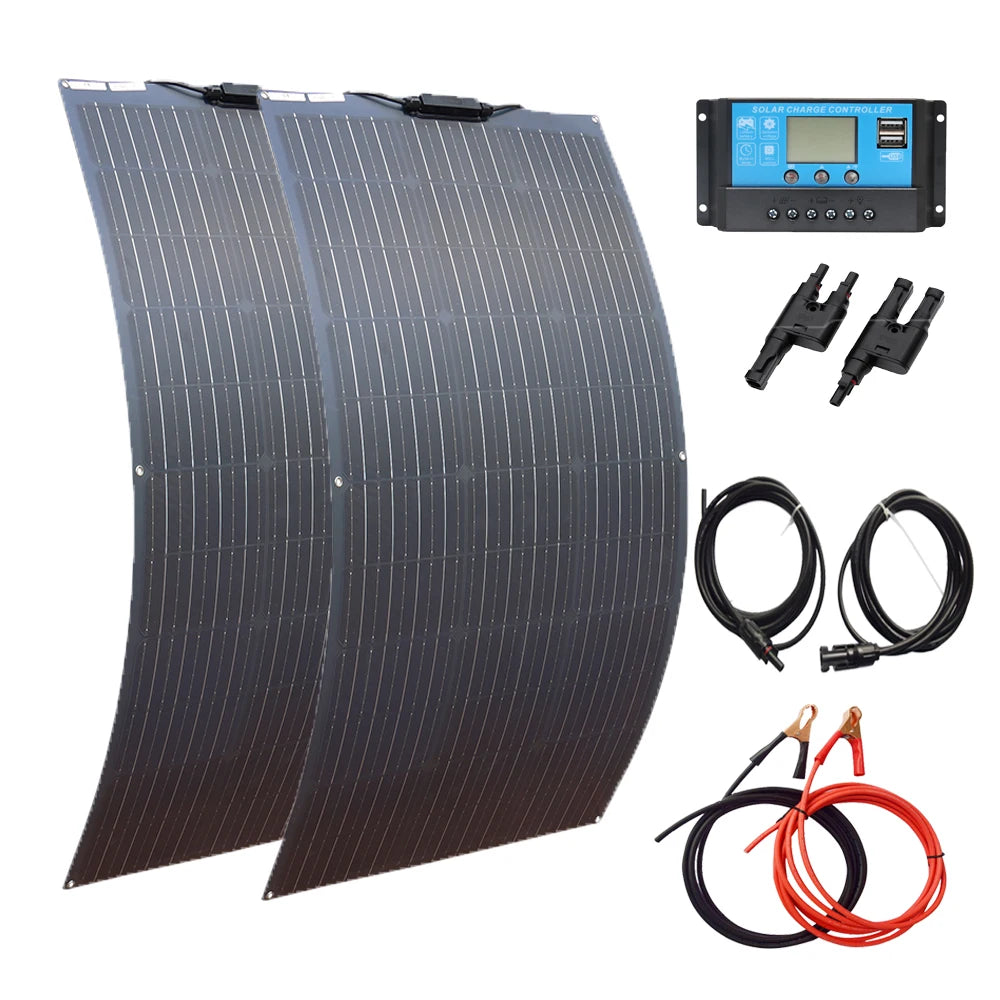

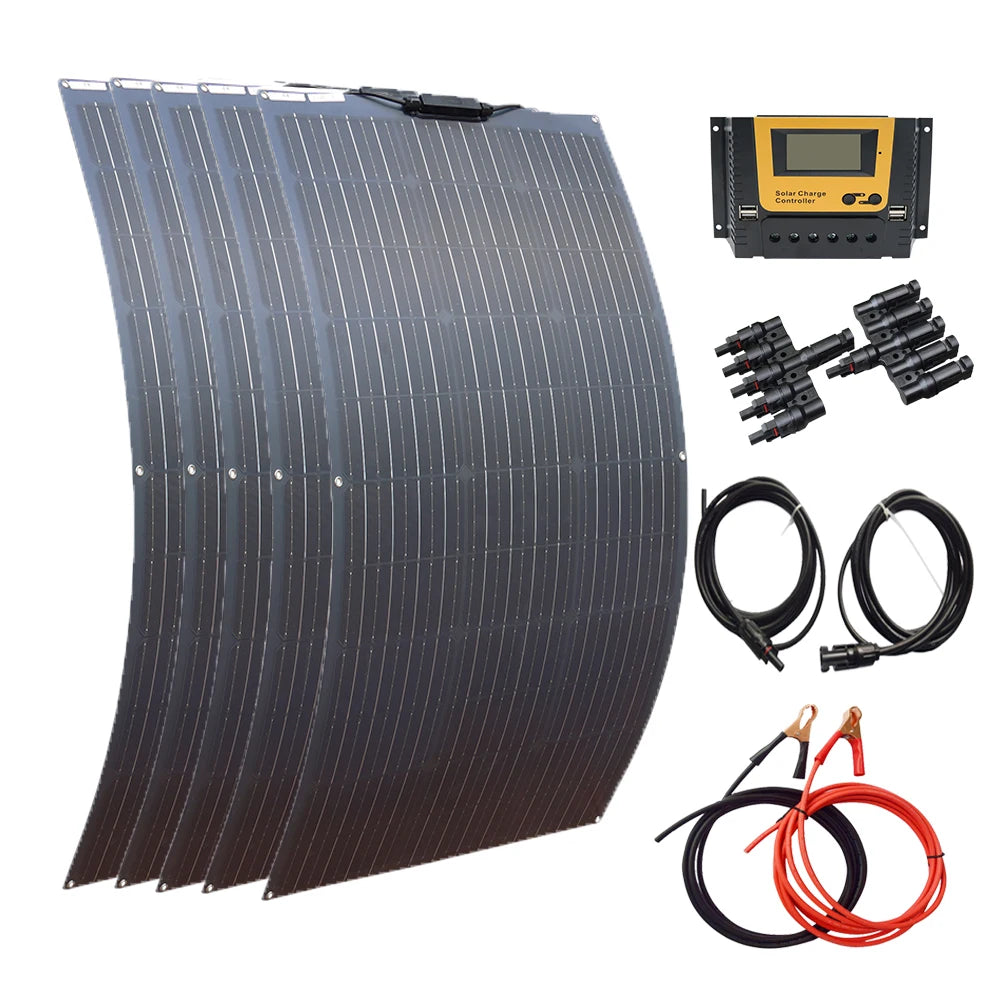

Package 2:100W solar panel kit

1. 1 pcs solar panel (size 1000mm*500mm*2.5mm)

2. 10A 12v/24v charge controller

3. 1 set 3m Extension cable with PV connector

4. 1 set 3m cable with alligator clip （connect to battery）

24V Solar panel kit connection diagram

12V Solar panel kit connection diagram

Solar system kit wiring method and precautions

1.The solar system kit connection is divided into parallel connection or serial connection. The controller must be first connect the battery , and then connect the solar panels. 2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller. 3.The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller. 4.When the cable is connected to each component, the connection should be stable and there should be no looseness. 5.The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles. 6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.

PWM Solar Controller

3 Controller connection instructions a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display. b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable. c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller. d According to the controller manual, adjust the parameters you need.

Extension cable with PV connector

Model: 1*2.5mm Number of cores: single core multiple strands The maximum external diameter of the wire: 5.3 ± 0.2 (mm) Nominal cross section: 2.5 (mm) Uses: Photovoltaic power generation Core material: tinned copper wire Product Certification: TUV Voltage rating: 0.6/1KV Rated voltage: 1000V length：3M

cable with alligator clip

Model: 1*2.5mmNu mber of cores: single core multiple strandsTh e maximum external diameter of the wire: 5.3 ± 0.2 (mm)No minal cross section: 2.5 (mm)Us es: Photovoltaic power generationCo re material: tinned copper wirePr oduct Certification: TUVVo ltage rating: 0.6/1KVRa ted voltage: 1000Vle ngth：3M

Parallel connector

Maximum working voltage:DC1000V Rated Current:30A Flame class: UL94-V0 Contact resistance:≤5mmΩ Shell Protection degree:IP67 Specification of Connecting Line: 4mm² Contact Material: Copper,Tin plate Ambient temperature range：-40～+85℃ Safety Level:class‖
